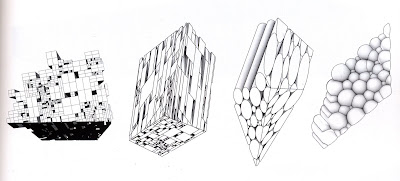

3d Three dimensions onto a 2d surface presents different challenges for each different morphology
Abstraction Necessary to be reductive but not too reductive
Tonality The effects of light can be mapped onto the surface and reveal cavities internally
Mapping Surfaces Map intricacies, patterns, surface erosions, depths, edges
Multiple Sections Reveal specific moments between outside and inside, dissections of the whole
Cutaway Section Strategic removal to make visible what is otherwise not
Familiarity Plot familiar with unfamiliar and tighten the frame of reference
Duality Overall qualities can be revealed- both internal and external simultaneously
Conceal/ reveal Give a comprehensive, comparitive study
Exploded Exloded drawings are assemblages in their own right
Exploration Reinvent drawing disciplines
Techniques Develop special techniques to show sectional properties, layers, patterns
Zoom Scales Use a variety of scales for comparision
Differentiation Differentiation of tonality within primary pattern to reveal complexities
Black & White Extreme contrast to depict patterns of thickness, thinness

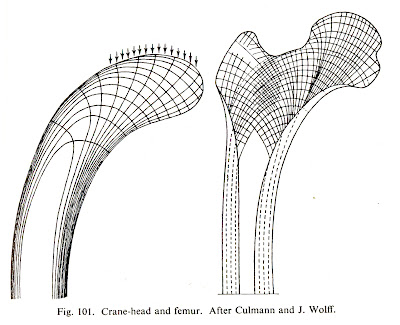

Structure A secondary reading reveals and abstracts these findings
Depth Introduce colour to reveal levels in relation to an implied datum
Contrast Contrast must be maintained to avoid ambiguity
Accuracy Accuracy in reading and plotting of data will reveal new patterns beyond your expectations
